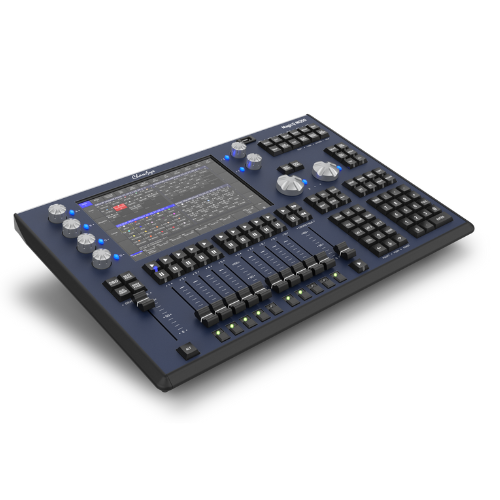

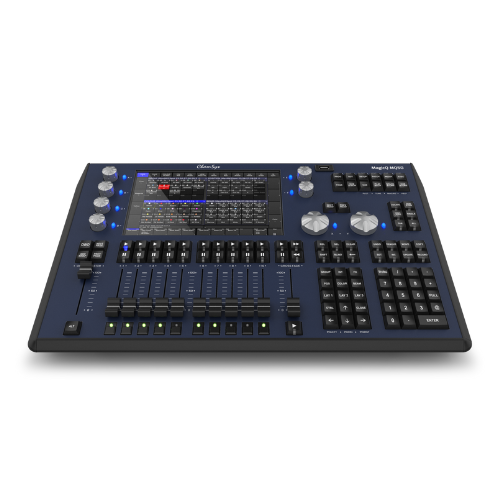

Chamsys MagicQ MQ50 Compact Console

The MagicQ MQ50 is a compact lighting console designed for small to mid-sized venues. It features a 10.1” multi-touch display, 10 playback faders, and supports 8 universes directly from the console. With built-in WiFi, RDM via 4 assignable DMX ports, and silent operation, it’s ideal for theaters, clubs, and schools. Despite its size, the MQ50 includes powerful tools like MagicVis, MagicHD connectivity, and compatibility with the full MagicQ software suite, making it a perfect all-in-one solution for on-the-go control or permanent installs.

Key Features

• 8 Universes via ArtNet/sACN/Pathport (no expansion required)

• 4 Assignable DMX Outputs with RDM Support

• 10 Full Cue Stack Playbacks

• High-Resolution 10.1” Multi-Touch Display

• Built-in WiFi for MagicQ Remote App

• Silent Operation — Fanless Design

• HDMI Output for External Display (up to 1920×1200)

• USB Ports: 5 (incl. high power for charging)

• MIDI In/Out (Notes only), Audio In/Out

• Fully compatible with all MagicQ software and consoles

• 1x Dual-Color Desk Light

• 1x Neutrik PowerCON TRUE1 Cable

• 1x Dust Cover

• Max Channels: 4,096

• Max Fixtures: 4,096

• Cues: 5,000

• Cue Stacks: 2,000

• Groups: 5,000

• Palettes: 4,096

• Media Server Layers Supported: 50

• Power Input: 110–240V AC

• Max Power Consumption: 35W

• Dimensions: 525mm W × 350mm D × 60mm H

• Weight: 7 kg (15.4 lbs)

• Flight Case Weight: 17 kg (37.4 lbs)
