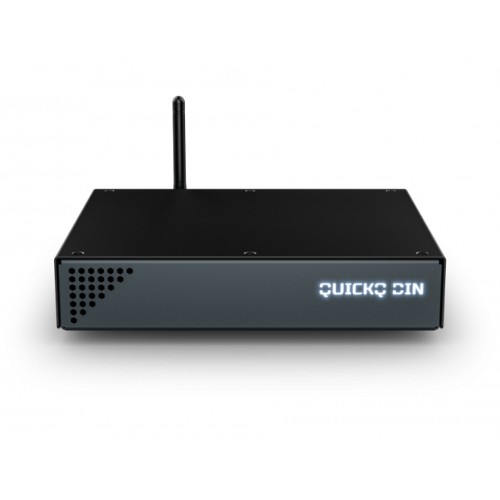

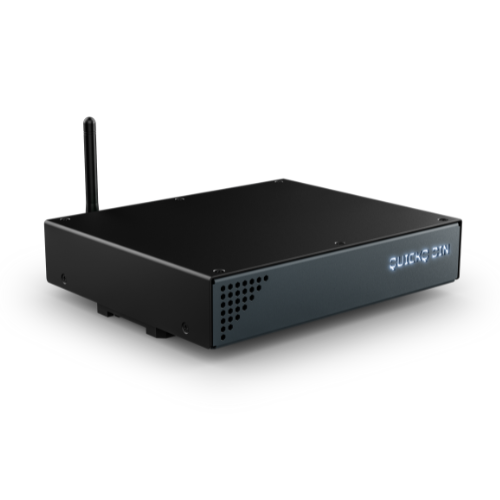

Chamsys QuickQ DIN

The ChamSys QuickQ DIN brings the intuitive simplicity of QuickQ software to a compact DIN rail-mounted form factor, offering a powerful solution for space-sensitive architectural and installation environments. Ideal for control rooms, venues, themed attractions, and fixed installs, QuickQ DIN gives you the full feature set of QuickQ consoles in a minimal footprint.

The unit supports 4 DMX universes via Art-Net or sACN, and includes 2 RDM-enabled DMX outputs (Phoenix connectors), inbuilt Wi-Fi, and 4 x 10Scene ports to connect up to 40 QuickQ 10Scene wall plates. From creating time-based lighting events to managing fixture groups and executing dynamic scenes, this controller offers a complete system for scheduling and remote control.

With a simple Hot-Takeover mode, QuickQ DIN seamlessly hands over control to an external console when needed—perfect for hybrid setups. It’s also compatible with the free QuickQ Offline Designer software for preprogramming and remote updates.

Key Features:

• Compact DIN rail lighting controller for fixed installs

• 4 DMX Universes via Art-Net/sACN

• 2 RDM-enabled DMX Outputs (Phoenix Screw Terminal)

• Inbuilt Wi-Fi for programming and remote control

• Supports Events, Executes, and 10Scene wall plates

• Simple Hot-Takeover mode for external console override

• Fixture library with 48,000+ profiles

• Works with LEDs, dimmers, moving lights, and architectural fixtures

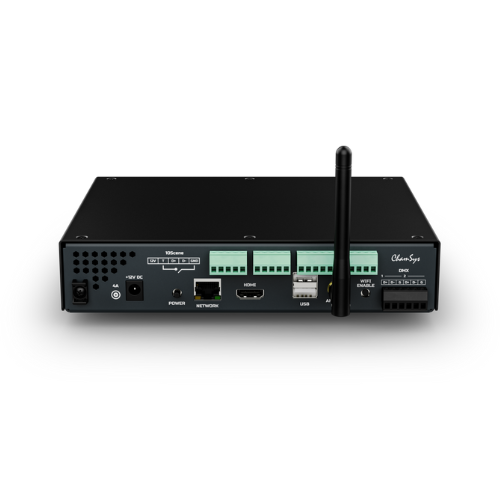

• DMX Universes: 4

• DMX Outputs: 2 (Phoenix Screw Terminal, RDM-enabled)

• Network Port: 1x RJ45

• USB Ports: 2

• Wi-Fi: Built-in

• 10Scene Ports: 4 (Supports 40 wall plates)

• Power Input: 12V DC

• Max Power Consumption: 60W

• External Monitor Support: HDMI (1920x1080)

• Intuitive QuickQ interface

• Built-in FX Generator

• Color Picker & Gel Library

• OSC protocol support

• RDM AutoPatch for fast configuration

• Preprogramming via Windows/Mac Offline Designer

• Supports cue stacks, scenes, chases, and scheduled events

• Wi-Fi Antenna (1)

• DIN Rail Mount Clips (2)

• 10Scene Connectors (4)

• 12V Power Supply (1)

• Unit Dimensions: 200mm (W) x 165mm (D) x 40mm (H)

• Unit Weight: 0.65 kg (1.43 lb)

• Boxed Dimensions: 268mm x 220mm x 130mm

• Boxed Weight: 1.04 kg (2.29 lb)
