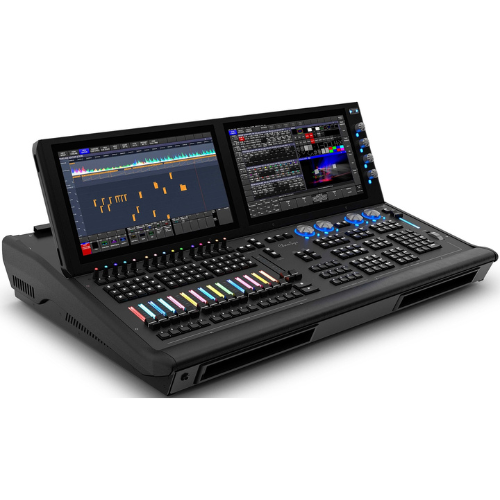

Chamsys MagicQ MQ500M+ Stadium Console

The MagicQ MQ500M+ Stadium is ChamSys' flagship console designed for the highest levels of professional lighting control. Built to deliver unmatched power, flexibility, and intuitive programming, it supports an impressive 400 universes directly from the console—no external processing required. Whether for stadium shows, touring productions, theaters, or broadcast, the MQ500M+ is engineered to perform with precision and reliability.

The MQ500M+ introduces fully motorized playback faders and encoder playbacks, offering a total of 42 playbacks for ultimate show control. Dual HD 15” multi-touch displays, backlit keys, illuminated faders and encoders, and advanced connectivity options make it the ideal workstation for demanding environments.

Key Features

• Supports 400 universes without external processors

• 15 Motorized Fader Playbacks

• 15 Encoder Playbacks for versatile programming

• 12 Multi-Function Execute Keys for Macros, Palettes, Playbacks

• Dual 15” High-Definition Multi-Touch Screens with gesture support

• 8 Attribute Encoders

• Full backlit keys, illuminated faders, and encoders

• Built-in MagicVis 3D Visualizer with high-quality rendering

• 4 Direct DMX Ports and 4 Gigabit Network Ports

• Intensity Wheel and 100mm split crossfaders for theatre-style control

• Expandable with MQ500M Stadium WingM

• Inbuilt Uninterruptible Power Supply (UPS) for safe operation

• MagicQ MQ500M+ Stadium Console

• Power Cable

• Dust Cover

• Quick Start Manual

• Universes: 400

• Channels: 204,800

• Fixture Capacity: Up to 204,800 fixtures

• Cues: 5,000

• Cue Stacks: 2,000

• Palettes: 4,096

• Groups: 5,000

• Displays: 2 × 15” Multi-Touch HD Screens

• Motorized Playbacks: 15

• Encoder Playbacks: 15

• Multi-Function Execute Keys: 12

• Attribute Encoders: 8

• Direct DMX Ports: 4 (5-pin XLR)

• Network Ports: 4 × Gigabit Ethernet (RJ45)

• External Monitor Support: 2 DisplayPort++ Outputs

• USB Ports: 7

• Audio I/O: Audio In and Out Ports

• MIDI: MIDI Notes In/Out, MSC, and LTC In/Out

• Remote Input: Available

• Console Lamp Port: 3-pin XLR

• Built-in UPS: Yes

• Visualization Universes: 256

• Dimensions (W×D×H): 860 × 587 × 85 mm

• Weight: 35 kg
