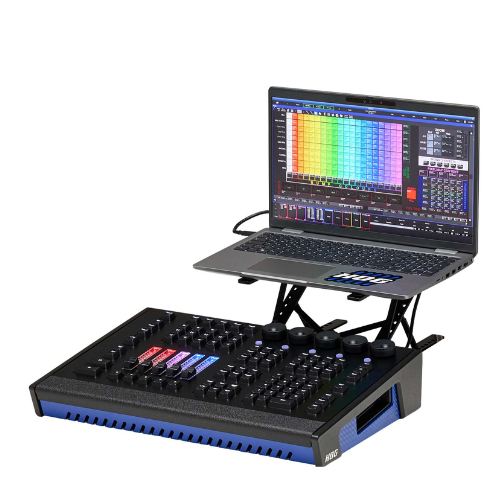

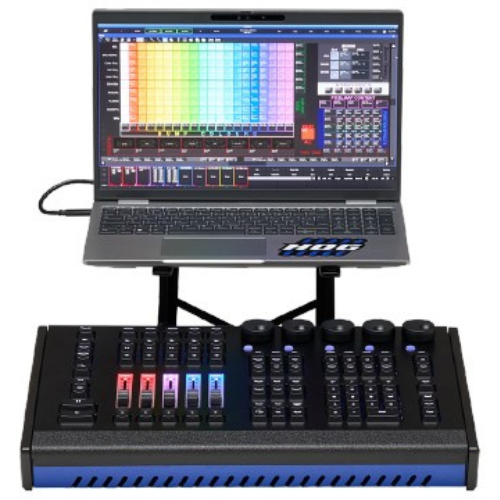

High End Systems Gig Hog Programming Wing

The Gig Hog programming wing is a versatile, professional-grade hardware solution for expanding any lighting setup, large or small. Designed to pair perfectly with your HPU hybrid processing unit or Hog PC system, the Gig Hog offers intuitive, streamlined programming with RGB-backlit keys, five motorized faders, high-quality encoders, and a USB-C docking station that powers your laptop with up to 100W.

Need flexibility? The Gig Hog is built for it. Easily mount it into a standard 19-inch rack (optional rack ears) or take it on the go with the compatible Gig Hog carry bag. With built-in DMX, SMPTE, Ethernet, and USB connectivity, the Gig Hog simplifies your rig while enhancing your control and workflow—perfect for mobile techs, small productions, and touring pros.

Key Features:

• Unlocks 12 Universes (6,144 addresses) on Hog PC – no ETCnomad USB key needed

• 5 pageable motorized RGB-backlit master playbacks with flash, go, halt, and choose keys

• Full RGB-backlit keypad for quick command input

• Built-in USB-C dock: powers your laptop (100W) and extends Ethernet/USB connectivity

• Two DMX512-A outputs (5-pin XLR), SMPTE input, MIDI, and OSC support

• Supports up to two external touch/multi-touch monitors

• Quick-access dedicated function and U-Keys

• Easy portability with rack-mountable form factor

• Compatible with Hog PC software and HPU hybrid systems

Programming & Playback Highlights:

• Command-line programming, fanning, ordered groups, fixture management

• Built-in media picker and Hog Color System

• Unlimited virtual masters, pixelmapping effects, batch controllers, and cue-level timing

• Comment macros, paging keys, record/update/merge functionality

• Full support for timecode, OSC, MIDI Show Control (with optional interface)

• TRUE1 Power Input Cable

• International Power Adapter

• Dust Cover

• Pre-cut foam fitting into a Pelican 1560 Case

• Capture Lighting Design Software (Duet Edition)

• Power Input: 100–250VAC, 50/60Hz, Max 80W

• Dimensions: 107mm (H) x 450mm (W) x 321mm (D) / 4.2” x 17.8” x 12.7”

• Weight: 5.4 kg (12 lbs)
