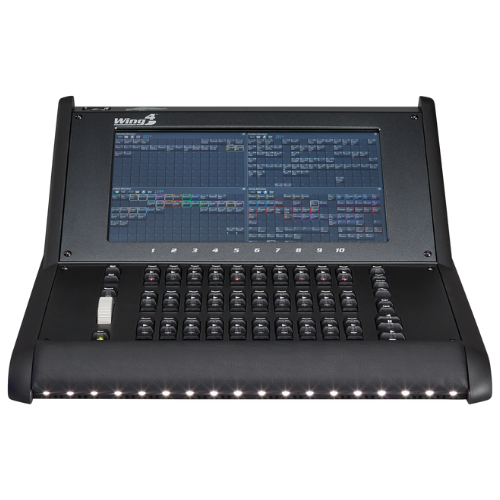

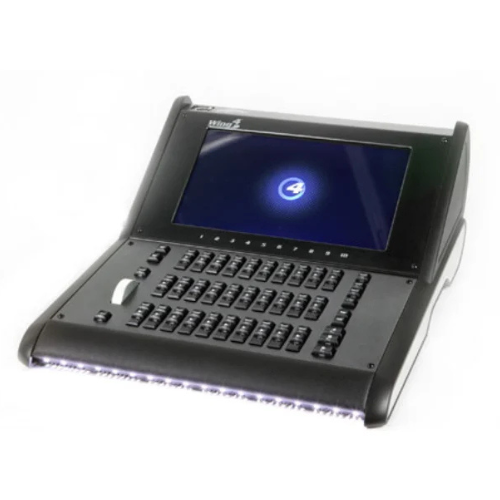

Take your Hog system to new heights with the Master Wing 4! Designed for seamless integration with the Hog 4, Full Boar 4, Road Hog 4, Rack Hog 4, and Hog 4 PC software, the Master Wing 4 offers professional-grade expansion with 30 additional faderless playback masters. Each master is equipped with responsive Choose, Go, and Flash buttons, giving you fast access to essential playback controls.
The Master Wing 4 features an integrated 15.6-inch 10-point multi-touch display, a dedicated rate wheel, and Master Choose paging buttons, all built with the same high-quality components found in the full Hog 4 console line. It connects easily via USB and is powered by standard IEC mains, ensuring a smooth setup for tours, installs, and production environments.
Need DMX outputs? A Super Widget Expansion slot provides the option to add four DMX universes directly to your system when paired with Hog 4 PC.
Key Features:
-
30 faderless masters with Choose, Go, and Flash buttons
-
15.6-inch internal multi-touchscreen (10-point touch)
-
USB connection to Hog 4 consoles, Rack Hog 4, or Hog 4 PC
-
Dedicated rate wheel for playback control
-
Master Choose column and paging buttons
-
Super Widget Expansion Slot for 4 DMX outputs
-
Includes dimmable white/blue LED desk light and dust cover
-
Compatible with: Tour Hog, Stage Hog, Flex Hog setups via Hog 4 software
Included Items:
Technical Specifications:
-
Power Input: 100-250VAC, 50/60Hz
-
Fuse: 5AT (5x20mm)
-
Dimensions: 9.6” (H) x 20.2” (W) x 24” (D) / 244mm x 512mm x 610mm
-
Weight: 27.6 lbs (12.5 kg)
-
Connectors: 2x USB 2.0 (rear), 1x IEC320 C13
