Chamsys MagicQ MQ500M Stadium Wing

The MagicQ MQ500M Wing is a professional-grade expansion wing purpose-built for seamless integration with the MagicQ MQ500M Stadium console. Offering 30 total motorized playbacks—15 fader playbacks and 15 encoder playbacks—each with RGB-backlit illumination and separate paging, this wing delivers unmatched flexibility for complex live productions. It also includes dual motorized crossfaders and 4 assignable multipurpose encoders for customizable playback control.

Designed for maximum visibility and control, the MQ500M Wing features a full HD multi-touch display with gesture support and adjustable viewing angles. This touchscreen connects directly to the MQ500M via HDMI and can display any MagicQ window, effectively extending your control surface with intuitive functionality.

Ideal for touring, broadcast, and arena-scale productions, the wing includes built-in UPS protection, 4 direct DMX ports, and a high-power USB charging port located in an illuminated front pocket—perfect for mobile devices and tablets.

Key Features:

• 30 Total Playbacks: 15 motorized faders + 15 encoder playbacks

• Full HD Multi-Touch Display with gesture support

• Dual motorized crossfaders

• 4 assignable encoders for Execute or custom functions

• RGB-backlit buttons, faders, and encoders

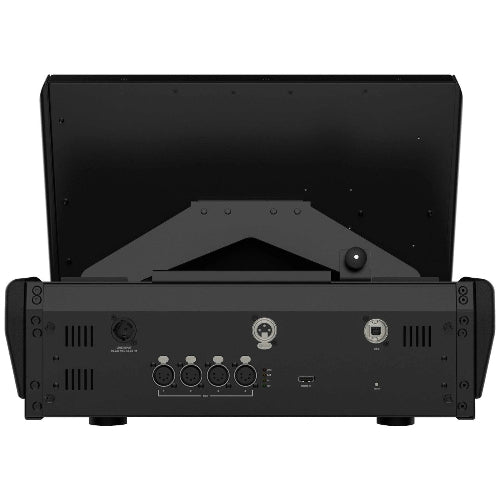

• 4 Direct DMX Outputs

• Illuminated storage pocket with high-power USB charging port

• Integrated UPS with 12V lead-acid battery

• USB and HDMI connectivity to MQ500M console

• Width: 471 mm

• Depth: 587 mm

• Height: 85 mm (front), 188 mm (rear with screens stored)

• Weight: 13 kg

• Power Input: 110–240 VAC
