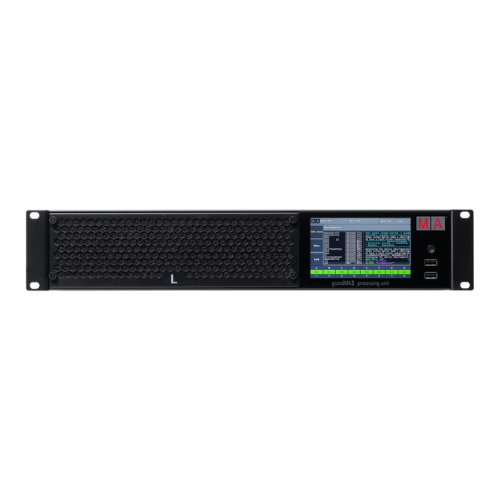

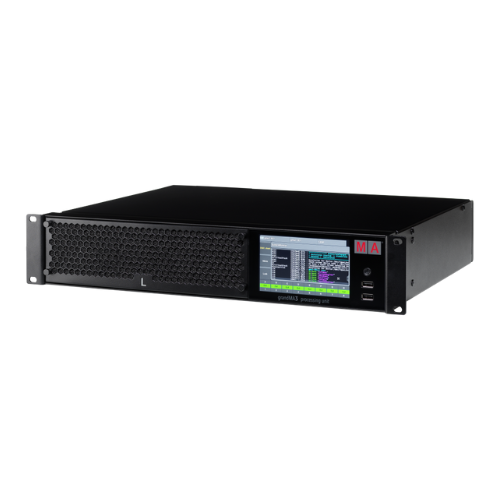

MA Lighting grandMA3 processing unit L

Expanding your grandMA3 system is easy with the addition of the grandMA3 Processing Unit L. Designed for larger, more complex setups, the Processing Unit L adds 8,192 parameters to your system with frame-synchronous calculation within the MA-Net3 environment. It also offers Mode2 functionality, enabling expansion of existing grandMA2 systems by 4,096 parameters.

This unit is perfect for touring and installations, thanks to its compact 2RU rack-mountable design. Equipped with eight DMX outputs, it ensures frame-synchronous DMX distribution across your network. For larger networks, additional grandMA3 xPort Nodes can be added for even greater flexibility.

An integrated touchscreen provides a comprehensive system overview, allowing for easy configuration, status monitoring, and efficient maintenance. Whether installed in a central rack for system expansion or deployed in a touring rig, the grandMA3 Processing Unit L is built to handle high-demand professional environments with maximum reliability.

Key Features:

• Adds 8,192 parameters for grandMA3 systems

• Expands grandMA2 systems with 4,096 parameters in Mode2

• Compact 2RU rack-mountable design

• 8 DMX512-A frame-synchronous outputs

• Integrated touchscreen for easy system monitoring

• Robust, efficient design for touring and permanent installations

• MA Quick Manual for grandMA3 Processing Units (Art.No.: 4025593)

• 1x powerCON TRUE1 socket (NAC3FX-W-TOP)

• Parameters: 8,192 (HTP/LTP) | Mode2: 4,096 (HTP/LTP)

• Operating Voltage/Supply: AC 100–240V, 50/60Hz

• Power Consumption: Max. 200 VA

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Dimensions: 482 x 372 x 87 mm (19 x 15 x 4 in)

• Net Weight: 5 kg (12 lbs)

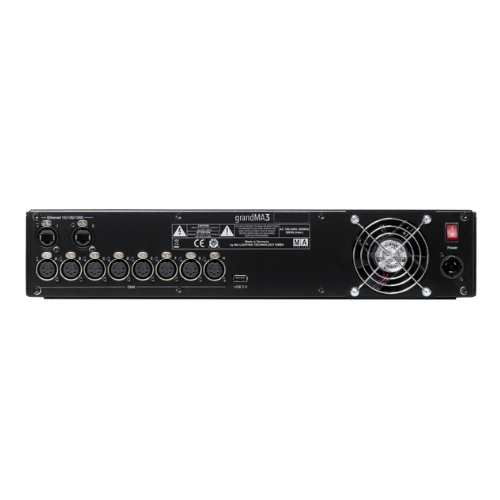

• Connectors:

  • 1x powerCON TRUE1

  • 2x etherCON/RJ45

  • 8x DMX512-A Out (5pin XLR female)

  • 3x USB 2.0 (type A)
