MA Lighting grandMA3 onPC 8Port Node PoE

Compact power. Big control.

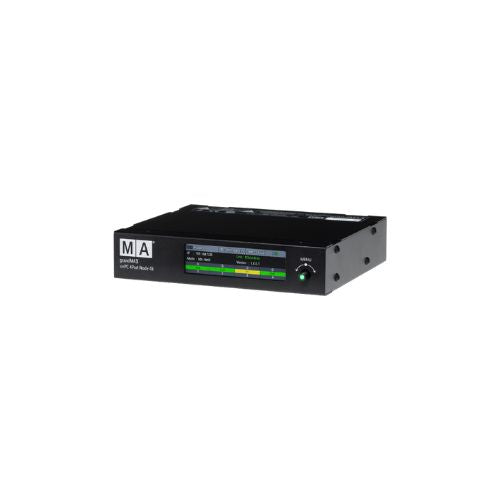

The grandMA3 onPC 8Port Node 4k PoE is MA Lighting’s most robust DMX output node, built to deliver 8 universes of reliable DMX512-A output in a single 1RU 19” rackmount chassis. Whether you're patching DMX lines across a venue or powering your touring rack, this node provides unmatched flexibility and performance — all while directly unlocking 4,096 parameters within grandMA3 onPC software.

Equipped with PoE compatibility, the 8Port Node reduces cable clutter and streamlines system integration. Its gigabit Ethernet connection and high-performance processor ensure stable data flow, while its 3.9” color display provides a simple user interface for configuration and real-time system status. It's compatible with MA-Net3, MA-Net2, Art-Net, sACN, and supports RDM for enhanced fixture communication.

Just download the free grandMA3 onPC software, connect your node, and take full control — with no compromise on features or functionality.

Key Features:

• Real-time control of 4,096 parameters

• 8 optically isolated DMX outputs (5-pin XLR female)

• Supports MA-Net3, MA-Net2, Art-Net, sACN, and RDM

• PoE compatible for streamlined power and data

• Gigabit Ethernet for fast and reliable data throughput

• Remote configuration via any grandMA3 console or onPC system

• Built-in 3.9” color touchscreen for status and setup

• Rugged 1RU rackmount housing

• Parameters: 4,096 (HTP/LTP)

• Mode2 Parameters: 2,048 (HTP/LTP)

• Voltage: AC 100–240V, 50/60Hz | PoE IEEE 802.3af

• Power: Max 15 VA

• Operating Temp: 0°C to 40°C (32°F to 104°F)

• Dimensions: 482 x 189 x 43 mm (19 x 8 x 2 in)

• Weight: 2 kg (5 lbs)

• 1 x powerCON TRUE1 (locking)

• 1 x etherCON/RJ45

• 8 x DMX512-A Out (5-pin XLR female)

• 1 x USB 2.0 (Type A)

• MA Quick Manual for grandMA3 Nodes (Art.No.: 4025695)

• PowerCON TRUE1 socket (NAC3FX-W-TOP or similar)
