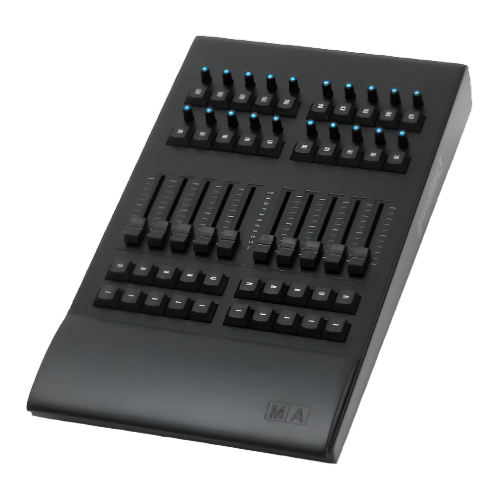

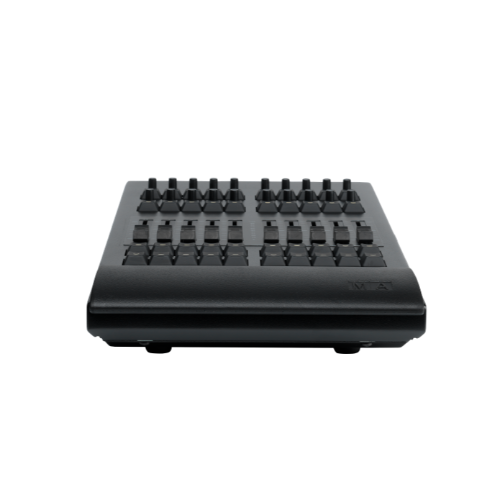

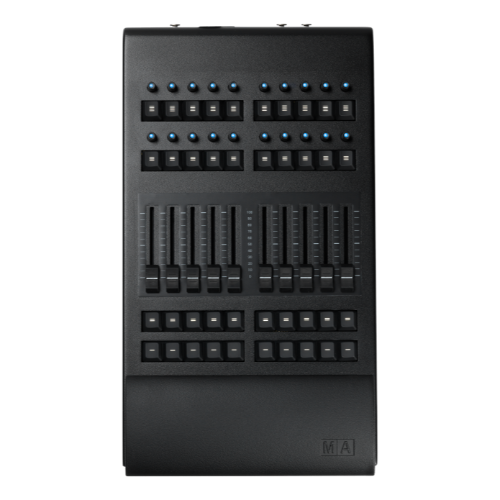

MA Lighting grandMA3 onPC Fader Wing

Compact power. Expanded playback.

The grandMA3 onPC Fader Wing is your ideal solution when you need more hands-on control within your grandMA3 onPC setup. Whether you're running a command wing or using the onPC software standalone, this compact hardware extension brings 40 additional playbacks to your programming station — without compromising portability or performance.

Equipped with 10 motorized faders, 20 rotary RGB backlit encoders, and two built-in DMX outputs, the fader wing is perfect for live playback in TV studios, houses of worship, theaters, and touring productions alike. Simply plug it into your PC via USB, and you're ready to access 4,096 parameters instantly with full grandMA3 software functionality.

Pair it with a grandMA3 onPC command wing, rack-unit, or use it independently as a compact control surface — it's flexible, powerful, and reliable.

Key Features:

• Control of up to 4,096 parameters with grandMA3 onPC

• 10 motorized 60mm faders and 20 rotary RGB encoders

• 40 dedicated playback slots

• 2x DMX512-A Out (5-pin XLR)

• USB-powered and plug-and-play via USB 2.0

• Individually backlit, dimmable, silent (clickless) keys

• Compatible with grandMA3 onPC command wing, XT, and rack-units

• Parameters: 4,096 (HTP/LTP)

• Voltage: AC 100–240V, 50/60Hz

• Power Consumption: Max 50 VA

• Operating Temp: 0°C to 40°C (32°F to 104°F)

• Dimensions: 240 x 427 x 102 mm (10 x 17 x 4 in)

• Net Weight: 5 kg (11 lbs)

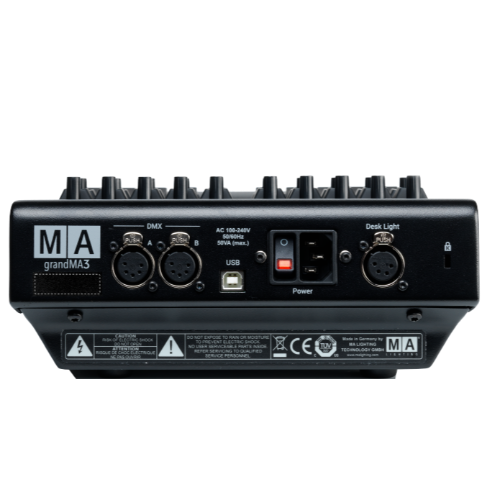

• 1 x IEC-60320 C14 (Power)

• 2 x DMX512-A Out (5-pin XLR female)

• 1 x USB 2.0 (Type B)

• 1 x LED Desk Light Port (4-pin XLR)

• Dust Cover (Art.No.: 4024544)

• USB 2.0 Cable A to B, 2m (Art.No.: 4021426)

• Magnetic Fader Label Plate (Art.No.: 4011387)

• MA Quick Manual (Art.No.: 4025839)

• MA Power Cable, IEC-C (Lockable), 2m
