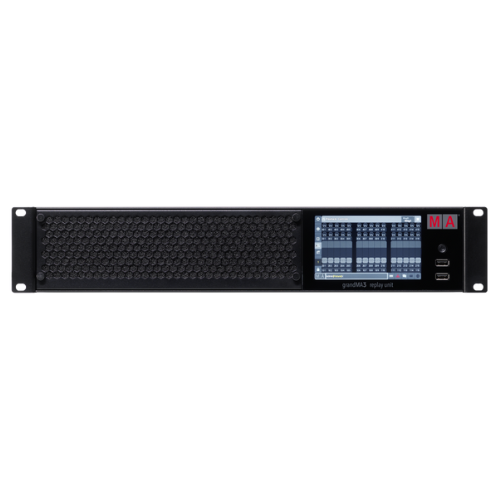

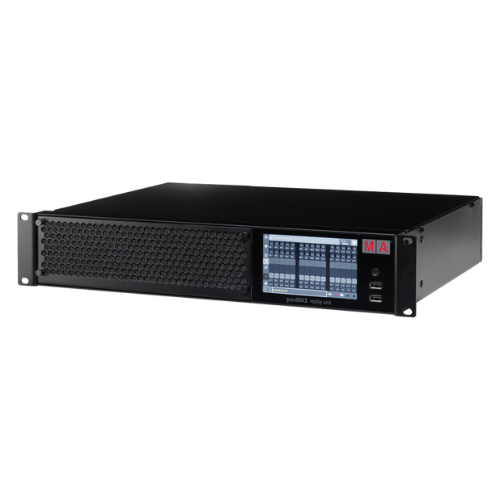

MA Lighting grandMA3 Replay Unit

Compact, Reliable, and Powerful Playback Control for Fixed Installations and Backup Systems

The grandMA3 Replay Unit brings the full power of the grandMA3 platform into a compact 19” rack-mountable form factor—ideal for theaters, studios, architectural installations, and backup configurations in live entertainment systems. Designed with robust reliability, this unit provides all core grandMA3 functions and features without physical faders or buttons, ensuring safe and uninterrupted playback in mission-critical environments.

Operated via the built-in multi-touch screen, or through a connected mouse, keyboard, or external displays, the Replay Unit offers the same high-level control found in full-sized grandMA3 consoles. It supports both grandMA3 and grandMA2 software environments, providing maximum versatility and compatibility.

With powerful networking capabilities, 6 DMX outputs, and a vast array of control interfaces, this device enables seamless integration into sophisticated lighting systems. Whether used as a primary controller for playback or a fail-safe redundancy system, the grandMA3 Replay Unit delivers professional-grade control in a highly portable design.

Key Features:

• Real-Time Control of up to 250,000 Parameters (via external grandMA3 processing units)

• 1x Internal Multi-Touch Command Screen + Supports 2x External Multi-Touch Monitors

• 6 DMX Outputs + 1 DMX Input

• 3x etherCON/RJ45 Ports – Ideal for MA-Net, Art-Net, and sACN

• MIDI In/Out, Timecode, Audio In, and S/PDIF I/O

• GPI Port for Triggering via Remote Systems

• 5x USB 2.0 Ports – For storage, peripherals, and accessories

• Compatible with grandMA3 and grandMA2 Software Environments

Why Choose the grandMA3 Replay Unit?

• Streamlined Playback without manual interface distractions

• Rock-Solid Reliability for automated and fixed installations

• Fully Compatible with grandMA3 and grandMA2 Shows

• Rack-Mount Ready – Ideal for system integrators and install techs

• Powered by the Revolutionary grandMA3 OS with support for GDTF fixtures and advanced effects mapping

• Architectural Installations

• Broadcast Studios

• Theater and Opera House Racks

• Permanent Venue Control Rooms

• Redundant System Backup for Touring Consoles

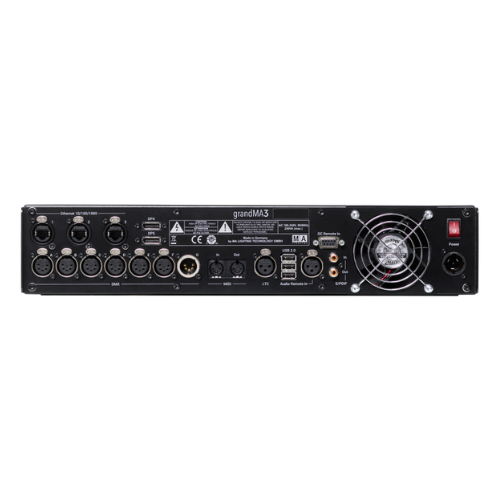

• DMX Outputs: 6x 5-pin XLR (Female)

• DMX Input: 1x 5-pin XLR (Male)

• MIDI: 1x In / 1x Out (5-pin DIN)

• Timecode Input: 1x Linear (3-pin XLR)

• Audio Input: 1x (3-pin XLR)

• GPI: 1x D-SUB DE9 (Remote Control)

• Network: 3x etherCON / RJ45

• Video Output: 2x DisplayPort 1.2

• Audio I/O: 2x S/PDIF (In/Out)

• USB: 5x USB 2.0 (Type A)

• Power Input: 1x powerCON TRUE1
