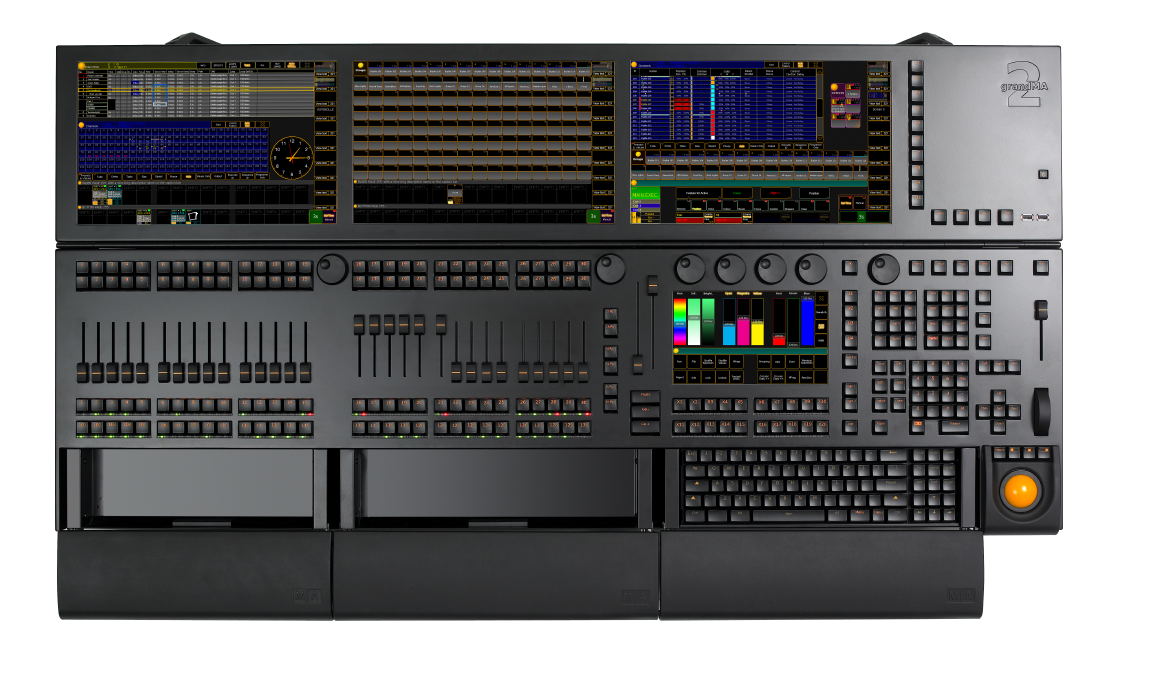

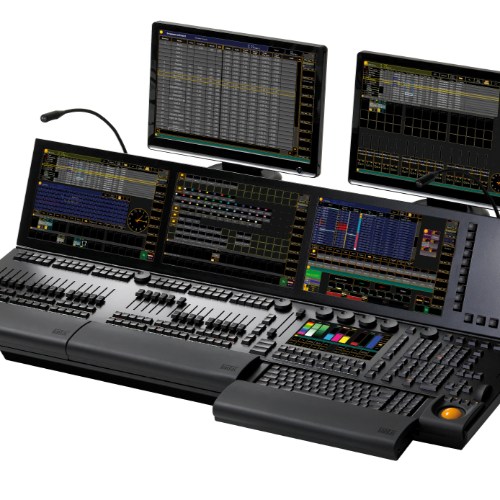

MA Lighting grandMA2 Full-Size (8 gb version)

The grandMA2 Full-Size is the ultimate lighting control console from MA Lighting, purpose-built for large-scale productions, complex lighting rigs, and professional applications across live events, touring, theater, broadcast, and more. As MA Lighting’s most powerful control solution, it integrates the control of conventional fixtures, moving lights, LEDs, and media from a single, intuitive platform.

Key Features:

• Real-Time Control for Up to 65,536 Parameters via MA NPU (equivalent to 256 DMX Universes)

• 8,192 HTP/LTP Parameters directly from the console

• 6x 5-Pin XLR DMX Outputs for native connectivity

• 3 Internal 15.4” TFT Wide Mode Touchscreens (WXGA resolution)

• 1x 9” Multi-Touch Command Screen for streamlined programming

• 2 External Monitor Ports (DVI, UXGA)

• 30 Motorized Executor Faders for fast playback access

• Motorized A/B Faders (100mm)

• Motorized Monitor Wing for adjustable viewing

• Silent, Individually Backlit Keys for click-free operation

• Integrated Keyboard Drawer and Built-in UPS for professional-grade convenience and backup

Smart Programming:

• Supports conversion of grandMA1 showfiles

• Infinite presets, cues, pages, sequences, and effects

• Uniform command key layout across all grandMA2 models for familiarity and ease of use


• 1x grandMA2 Full-Size Console

• 1x Dust Cover (Art.No.: 120131)

• 2x MA LED Desk Lights, 90° XLR 4pin, 27" (Art.No.: 120122)

• 2x Magnetic Label Plates for 15 faders (Art.No.: 4001091)

• Built-in Keyboard

• Operating Voltage: 120V/230V, 50/60Hz (auto-sensing)

• Power Consumption: 350VA

• Dimensions: 1,284 x 204 x 661 mm (50.6 x 8 x 26 inches)

• Weight: 46 kg (101 lbs)

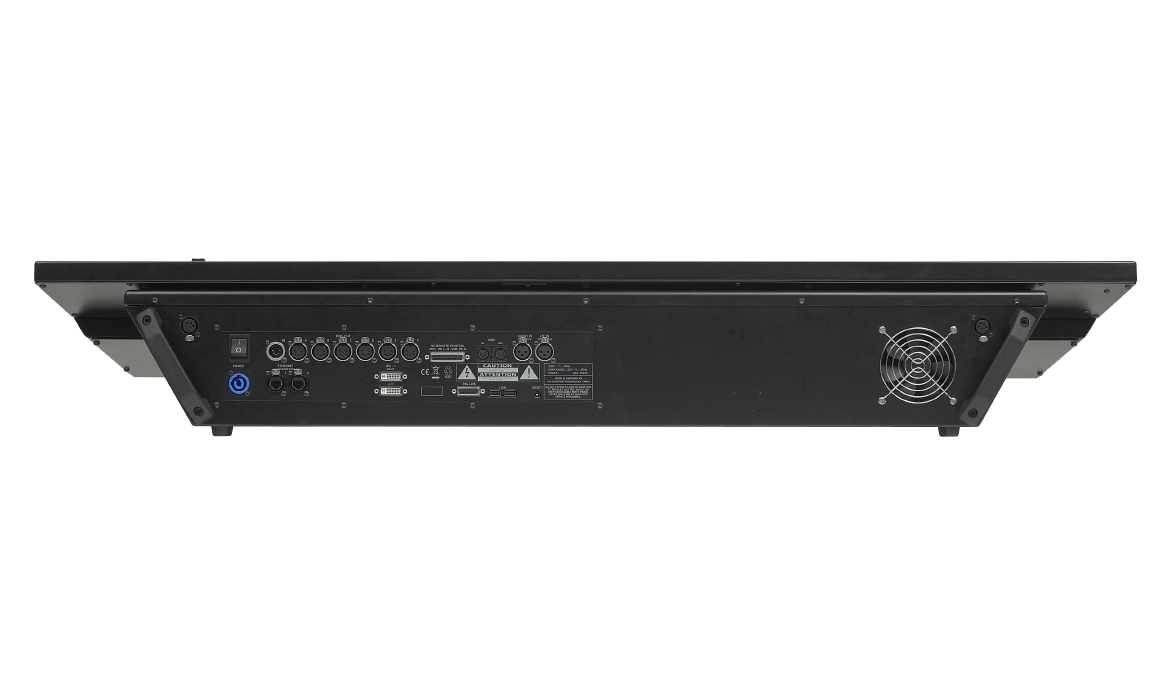

Output Connectors:

• 6x DMX 5-pin XLR

• 2x DVI (External Monitors)

• 2x etherCON (Networking: MA-Net2, Art-Net, sACN)

• 1x MA Link (for grandMA2 fader wing)

• 5x USB 2.0 Ports

• 1x DIN (MIDI)

• 2x XLR 4-pin (Desklights)

Input Connectors:

• 1x DMX 5-pin XLR

• 1x XLR 3-pin (Audio Input)

• 1x XLR 3-pin (SMPTE)

• 1x DIN (MIDI)

• 1x Sub-D 25-pin (Analog Remote)

• 1x PowerCON Mains Input

• Stadium Tours & Arena Shows

• Large-Scale Broadcast & Studio Work

• Theatrical Productions & Opera Houses

• Live Concerts & Festival Stages

• Corporate and Trade Show Lighting
