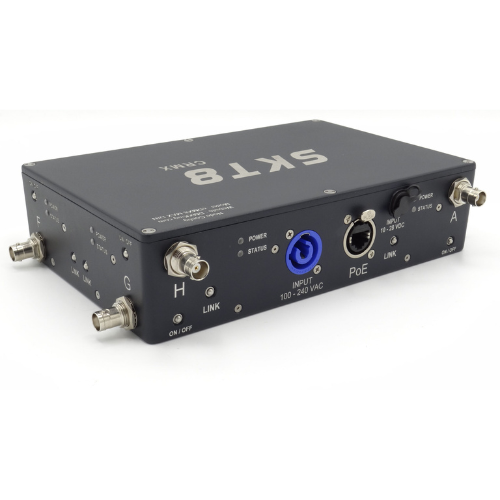

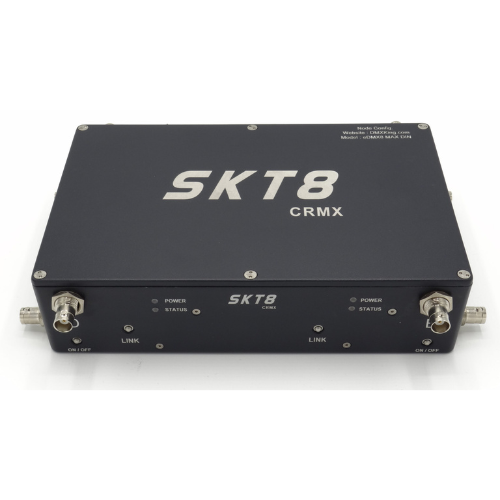

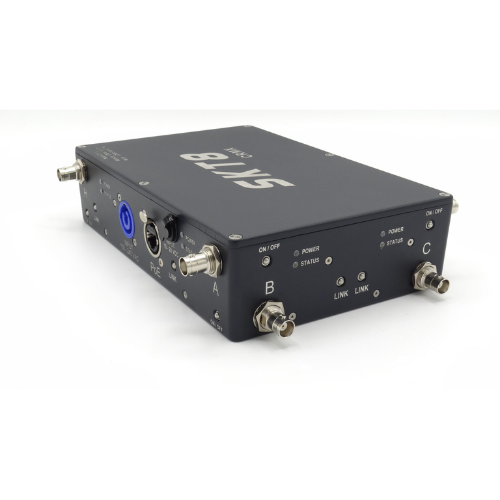

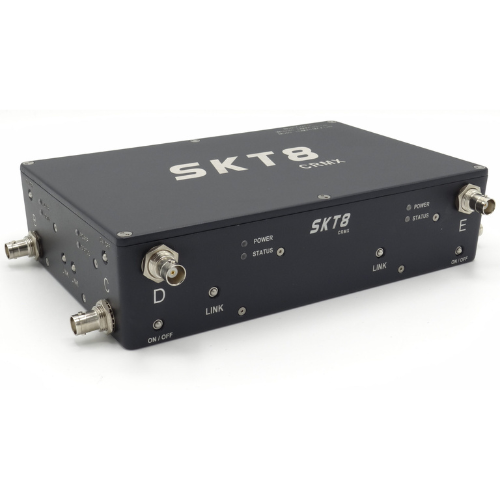

SKT8 TX Wireless DMX Transmitter

The SKT8 TX is a high-performance 8-universe wireless DMX transmitter built on LumenRadio’s robust CRMX technology, designed for the most demanding lighting applications. With a built-in network node supporting Art-Net and sACN (E1.31) protocols, the SKT8 eliminates the need for external conversion gear—making it a powerful all-in-one solution for large-scale productions, touring rigs, and venue installations.

Each of the eight universes transmits 512 DMX channels wirelessly, with independent pairing capability to compatible CRMX receivers. Configuration is quick and simple via RJ45 using DMXKing software.

The SKT8 also offers flexible dual power options, supporting both PowerCON AC input and Power over Ethernet (PoE) via its RJ45 port, enabling integration into a wide variety of power and networking environments.

Key Features

• 8 Universes of CRMX Wireless DMX (512 channels per universe)

• Built-In Art-Net & sACN Node (E1.31 protocol)

• Independently Pairable Universes for multi-zone control

• Network Configuration via RJ45 with DMXKing Software

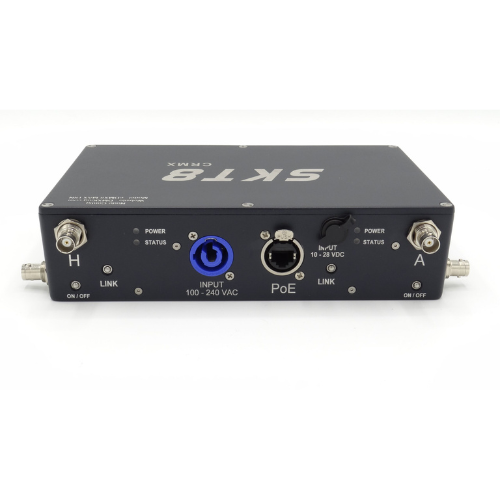

• Dual Power Input:

  • 90–240V AC via Neutrik PowerCON

  • IEEE 802.3af PoE via RJ45

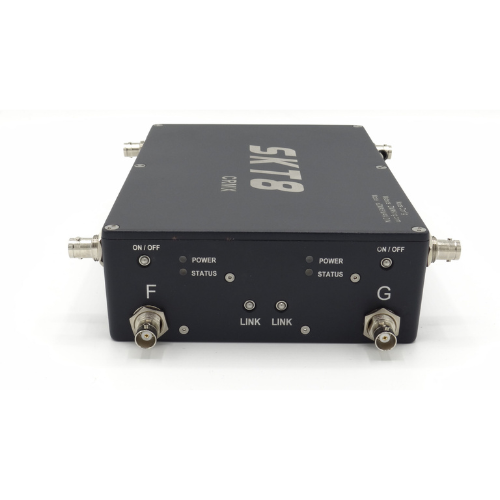

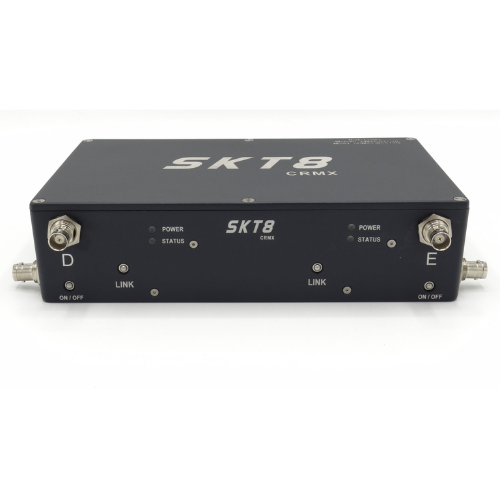

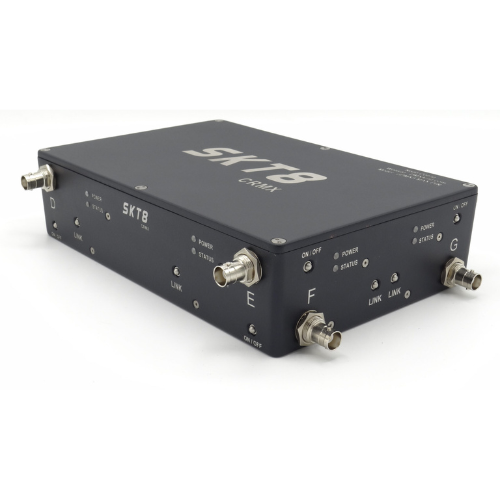

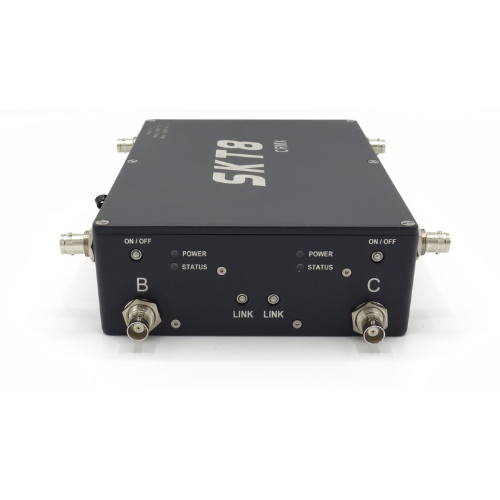

• Rugged Design with eight external antenna ports for reliable long-range performance

• (1) SKT8 TX Wireless DMX Transmitter with built-in node

• (8) RP-TNC Antennas

• (1) Neutrik PowerCON Feeder Cord

• Dimensions: TBA

• Input Voltage: 90–240V AC (PowerCON), PoE (IEEE 802.3af)

• Control Software: Configurable with DMXKing Software via RJ45

• Compatibility: Fully compatible with all LumenRadio CRMX receivers
