Description

The HedgeHog 4X is a compact, lightweight, and travel-friendly lighting console designed for smaller venues and mobile productions. Perfect for schools, nightclubs, corporate events, houses of worship, and medium-scale rental applications, this high-performance console delivers powerful control in a portable format.

Despite its small size, the HedgeHog 4X maintains the same programming layout and functionality as larger Hog consoles, allowing seamless show file compatibility across the Hog 4 range. With six universes of onboard processing, full networking capabilities, and support for external touchscreen displays, this feature-rich console is ready for any lighting challenge.


Key Features:

Hog 4 OS Operating SystemIndustry-standard software for seamless control & programming.
Built-in 12.1” Multi-Touch ScreenFast, intuitive programming right out of the case.
Compact Yet PowerfulSupports two external DP monitors for expanded workspace.

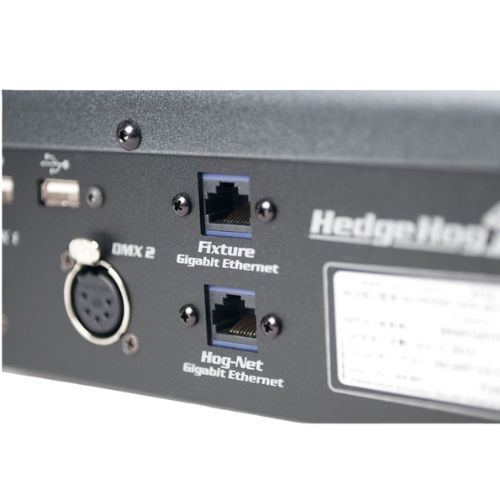

Full Networking CapabilitiesHog-Net & Fixture-Net connectors ensure seamless data flow.
Onboard ProcessingHandles six universes (3,072 channels) with expandability via DMX processors.
Versatile ConnectivitySupports USB playback, MIDI in/out/thru, and Art-Net/sACN visualizer integration.
Intuitive Control Surface10 manual playback faders, four encoder wheels, and 12 user-assignable function keys.
Reliable & Road-ReadyInternal solid-state drive, dust cover, and optional custom road case.


Why Choose the HedgeHog 4X?

🔹 Compact yet powerful—ideal for mobile and small-venue productions.
🔹 Seamless integration with larger Hog consoles & show file compatibility.
🔹 Intuitive interface with professional-grade features for advanced programming.

The HedgeHog 4X is the perfect balance of power, portability, and affordability, making it the go-to console for professionals who need big performance in a small package.

Upgrade your lighting control today with the HedgeHog 4X!

Specs

Connectivity & Expansion:

  • Local Output Processing: 3,072 output channels (expandable via HPU or DP8K).
  • Local DMX Outputs: 2x Neutrik 5-pin XLR (expandable with Widgets or Gateways).
  • External Display Support: Two DP touchscreen monitors.
  • USB Ports: 4 USB 2.0 + 4 USB 3.0 (rear).
  • MIDI Support: MIDI messages, MIDI Show Control, and MIDI Time Code.
  • Visualizer Integration: Fixture-Net (Art-Net/E1.31 sACN, unrestricted by local output capacity).
  • Expansion Options: Supports USB playback & expansion Wings.

Electrical & Power:

Mains Power: 100-250V AC, 50/60Hz, max 55W
Power Connector: IEC320 C13
Fuse: 1x 5x20mm 5AT fuse


Dimensions & Weight:

Width: 527mm (20.8")
Depth: 555mm (21.9")
Height: 101mm (4.0")
Weight: 7.7kg (17 lbs)

Included Items

One dimmable white desk light
Two USB flash drives (for show storage & recovery)
Dust cover
Optional custom road case available
