MA Lighting grandMA3 onPC Command Wing

Compact. Capable. Console-grade control on the go.
The grandMA3 onPC Command Wing transforms any PC into a full-featured grandMA3 lighting console. Designed for mobility and flexibility, it pairs seamlessly with the grandMA3 onPC software via USB, unlocking control for up to 4,096 parameters.

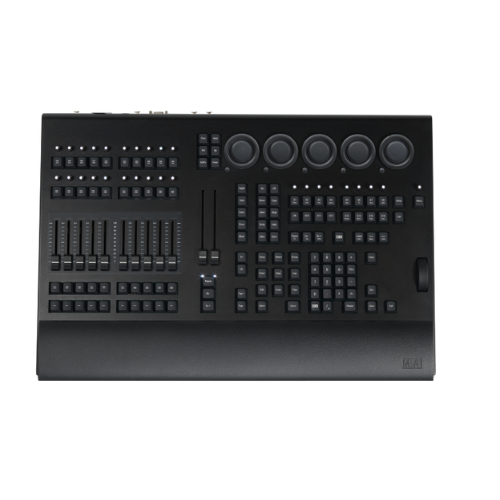

Whether you’re on tour, managing a small venue, programming pre-show, or backing up your main system, this wing delivers an authentic console experience with the same control layout found on full grandMA3 consoles — complete with 40 playbacks, 10 motorized faders, 16 x-keys, and 29 RGB encoders.

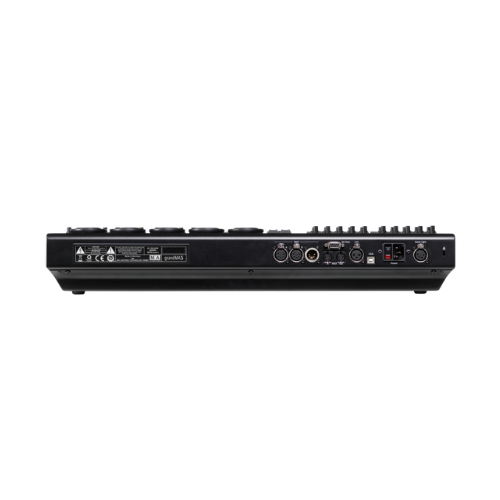

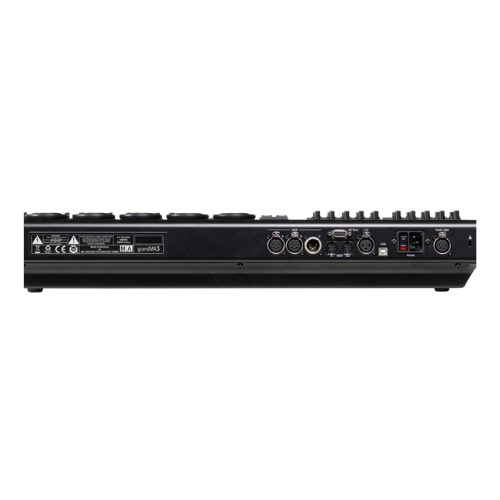

On the rear, you’ll find DMX, MIDI, Timecode, and remote control inputs, offering the I/O of a pro-grade console in a travel-ready form factor. It's perfect for clubs, theaters, studios, or any space where space-saving power matters.

Key Features:

• Real-time control of 4,096 parameters with grandMA3 onPC software

• 10 motorized 60 mm faders

• 40 playbacks + 16 assignable x-keys

• 29 rotary RGB encoders, including 5 dual encoders

• 2 A/B motorized faders (100 mm) and 1 Level-Wheel

• MIDI In/Out, DMX I/O, Timecode, and GPI interface

• Individually backlit, dimmable, clickless keys

• Powered via USB & AC, connects to any PC running grandMA3 onPC

• Parameters: 4,096 (HTP/LTP)

• Power: 100-240V AC, 50/60Hz, Max 50 VA

• Operating Temp: 0°–40°C / 32°–104°F

• Dimensions: 620 x 427 x 102 mm (25 x 17 x 4 in)

• Weight: 10 kg / 23 lbs

• 2x DMX Out (5-pin XLR), 1x DMX In

• MIDI In/Out (5-pin DIN)

• Timecode In (3-pin XLR)

• GPI (D-SUB DE9)

• USB-B (Type B), LED Desk Light (4-pin XLR)

• Dust cover

• USB cable (Type A to B, 2m)

• Magnetic plate for fader labeling

• Quick manual

• Power cable (IEC-C, 2m open-end)
