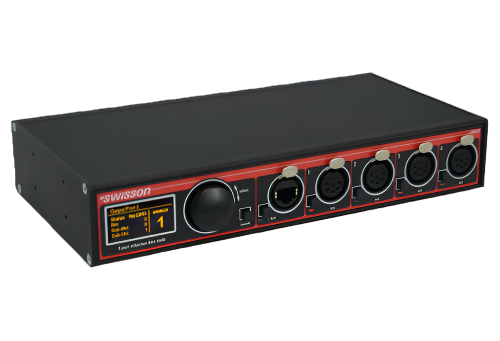

The pre-owned Swisson XND-4R5 is a professional-grade 4-port Ethernet to DMX node, ideal for streamlined, large-scale lighting control via Art-Net or sACN protocols. Known for its reliability and intuitive interface, this unit is perfect for venues, events, and installations looking to expand their DMX network infrastructure without compromising performance.

Whether you're integrating with a lighting console or running control software from a PC or mobile device, the XND-4R5 simplifies your workflow while ensuring data integrity across all four optically isolated DMX universes.


Key Features:

  • 4 Individually Optically Isolated DMX Ports
    Fully configurable as inputs or outputs to match your setup needs.

  • Dual Protocol Support
    Seamlessly compatible with Art-Net (v1–4) and sACN protocols.

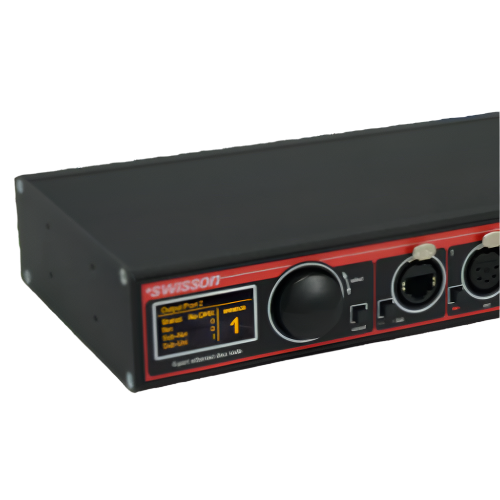

  • OLED Display + Encoder Knob
    On-device control for quick configuration and live status monitoring.

  • Quick Access Buttons
    Assign or switch universes with dedicated DMX port buttons.

  • Web Interface for Remote Management
    Adjust settings, check performance, or update firmware through your browser.

  • DMX Auto-Merging
    Accepts data from two controllers simultaneously without conflict.

  • DHCP Support
    Automatically integrates into DHCP-enabled networks for plug-and-play functionality.

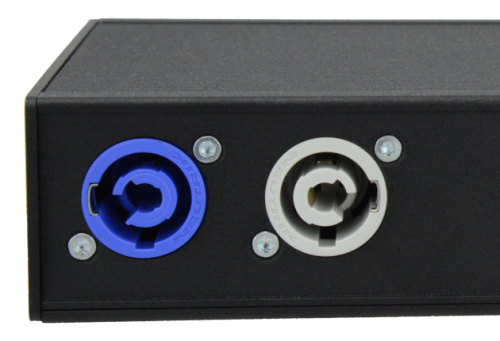

  • Neutrik powerCON In/Out
    Rugged, secure power connectivity with universal voltage support.


Pre-Owned Condition:

  • Fully tested and in excellent working condition

  • Minor cosmetic wear from previous professional use

  • Includes:

    • 1x Power Cable

    • 1x Set of Rack Ears

    • 1x User Guide


Why Buy Pre-Owned?
Get trusted performance and full-feature functionality at a fraction of the cost. Perfect for professionals looking to expand their lighting infrastructure with dependable, road-tested gear.

  • DMX Outputs: 4x 5-pin XLR (optically isolated)

  • Protocols Supported: Art-Net 1–4, sACN, sACN Draft v0.2

  • Network Interface: 10BASE-T / 100BASE-TX, Auto Negotiating

  • Display: 128x64 OLED w/ Encoder

  • Power Input: 100–240V AC (via powerCON)

  • Operating Temperature: -22°F to +122°F (-30°C to +50°C)

  • Dimensions: 19 x 5.35 x 1.75 inches (1U Rackmount)

  • Weight: 3.53 lbs (1.6 kg)
