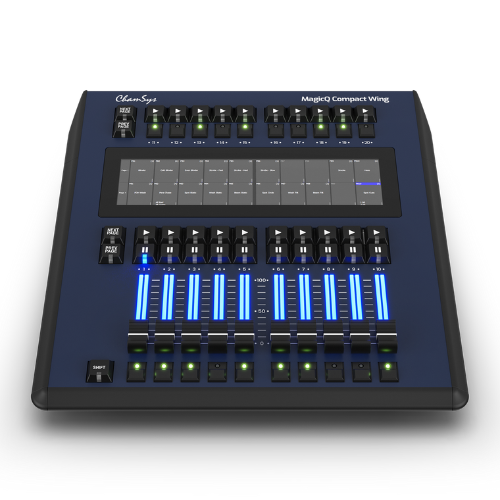

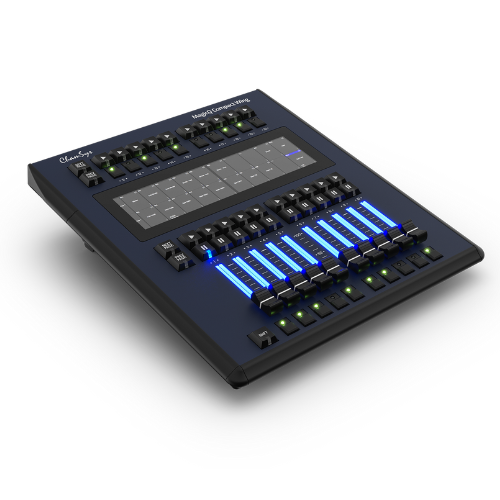

ChamSys MagicQ Compact Wing

The MagicQ Compact Wing is a powerful, portable playback expansion solution designed to seamlessly integrate with ChamSys MagicQ Compact consoles and PC-based setups. With a sleek, durable form factor and intuitive layout, this wing adds 20 additional playbacks—10 fader playbacks and 10 executor playbacks—making it ideal for touring professionals, fixed installations, and live production environments.

Each playback is equipped with dedicated control buttons (Flash, Go, Pause, Select), and a full-color touchscreen provides vibrant, fully electronic playback legends. A built-in USB hub enables daisy-chaining of up to two wings per system, and the integrated PowerCON TRUE1 input ensures reliable and secure power.

Whether you're programming a theatre show, lighting a concert, or managing a broadcast rig, the MagicQ Compact Wing offers tactile control, flexible expansion, and the same software compatibility that makes MagicQ a top-tier lighting control system.

Key Features:

• 20 Total Playbacks (10 Faders + 10 Executors)

• Full-Color Touchscreen Display with Electronic Legends

• Flash, Go, Pause, and Select Buttons on Each Playback

• USB Hub with 3 Ports (1 USB-C In, 2 USB-A Out)

• Supports Up to 2 Wings per System

• Compatible with MagicQ Consoles & PC/Mac Systems

• PowerCON TRUE1 Input and Dual-Color Work Light Port

• Compact, Tour-Ready Design

• USB A-to-C Cable

• Dual-Color Desk Light

• Dust Cover

• Neutrik PowerCON TRUE1 Mains Cable

Hardware:

• Fader Playbacks: 10

• Executor Playbacks: 10

• Touch Display: Yes

• USB Ports: 3

• Power Input: 100–240V AC (PowerCON TRUE1)

• Security: Kensington Lock Compatible

Software (When Used with PC/Mac):

• Universes: 64

• DMX Channels: 32,768

• Cues: 5,000

• Cue Stacks: 2,000

• Groups: 5,000

• Palettes: 4,096

• Media Server Layers: 50

Dimensions & Weight:

• Wing: 314 × 350 × 60 mm | 4.0 kg

• Boxed: 450 × 425 × 210 mm | 5.5 kg

• Flight Case: 486 × 404 × 214 mm | 8.0 kg
